Double Impeller Pump
Model: HS-H20X
Rate speed(r/min): 3600
Engine Model: 168F
Max Capacity(m³/h): 36
Description
|
Model |
HS-H20X |
Rate speed(r/min) |
3600 |
|
Engine Model |
168F |
Max Capacity(m³/h) |
36 |
|
Rate(KW) |
4 |
Max Head(m) |
60 |
|
Outlet Dia |
50(2") |
Suction Head(m) |
7 |
|
Inlet Dia |
50(2") |
|
|
The double impeller pump is a powerful and efficient centrifugal pump that offers enhanced performance for various fluid transfer applications. With its unique dual impeller design, this pump provides increased flow rates, improved pressure capabilities, and greater overall efficiency.
Features:
Dual Impeller Design: The double impeller pump features two impellers mounted on a single shaft, allowing for increased fluid movement and higher flow rates compared to single impeller pumps.
High Performance: The dual impeller configuration delivers improved pressure capabilities, making it suitable for applications that require higher heads or pressures.
Energy Efficient: With its optimized design, the pump maximizes energy efficiency, minimizing power consumption while delivering excellent performance.
Sturdy Construction: The pump is built with durable materials that ensure long-lasting performance even in demanding environments.
why choose double suction pump?

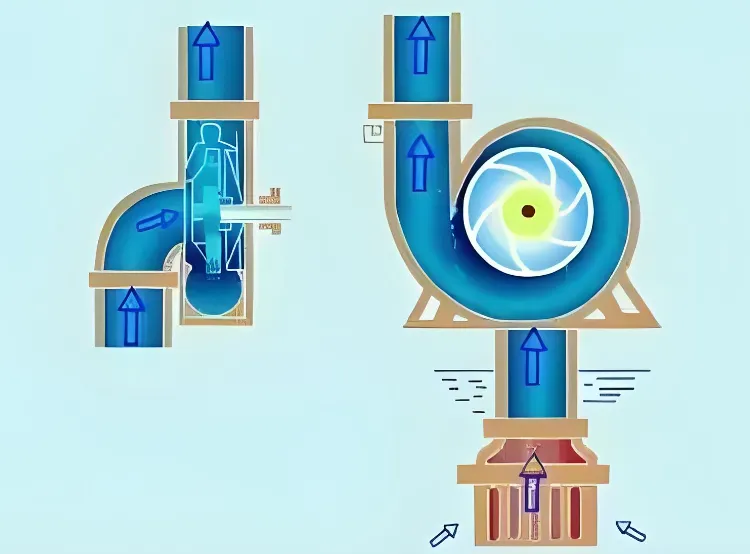

The main difference between a single suction pump and a double suction pump is that the double suction pump's impeller is designed to suck fluid from both sides. This double suction structure effectively eliminates the axial force on the impeller, allowing for higher flow rates than single suction pumps.
Double suction pumps are more resistant to wear due to axial thrust. Axial thrust usually occurs when water flows into the impeller. Since the water flow of a double suction impeller comes from both sides, the thrust can cancel each other out when the flow on both sides is relatively even. However, in actual situations, the flow may not be completely symmetrical, so double suction pumps are equipped with inner and outer bearings to share some of the load. These bearings are usually smaller than those of single suction pumps because the shaft of a double suction pump is more balanced.
Usage:
1.Installation: Begin by selecting an appropriate location for the pump, ensuring proper alignment with the power source and fluid connections. Install the necessary pipes or hoses, ensuring secure and leak-free connections.
2.Priming: Properly prime the pump before starting by filling the pump casing and suction pipe with the fluid being pumped. This helps eliminate airlocks and ensures smooth operation.
3.Operation: Start the motor and monitor the flow rate and pressure. Adjust the controls as necessary to achieve the desired flow and pressure levels.
4.Maintenance: Regular maintenance is essential for optimal performance. Inspect and clean the impellers, check for any leaks or blockages, and lubricate bearings and seals according to the manufacturer's recommendations.
wide Applications of Double Impeller Pump:
Water Supply Systems: The double impeller pump is commonly used in municipal water supply systems, ensuring a reliable water source for residential, commercial, and industrial areas.
Fire Protection Systems: This pump is often employed in fire sprinkler systems, providing high-pressure water flow to effectively combat fires.
Agricultural Irrigation: The pump's increased flow rates and pressure capabilities make it suitable for large-scale agricultural irrigation, delivering water to crops efficiently.
Industrial Processes: It finds application in various industrial processes, including chemical processing, mining, and wastewater treatment, where high flow rates and pressures are required.
The double impeller pump offers superior performance and efficiency, making it an excellent choice for applications that demand higher flow rates and pressures. Whether it's for water supply systems, fire protection, or agricultural irrigation, this pump delivers reliable and powerful fluid transfer capabilities.
why choose us
Reliable Quality
We have many patents and ISO certificate. Every year, we insist on making 5% sale income investment in research and development field.
Strong Technical Team
We possess a high quality scientific research staffs already and a set of perfect quality certification systems.
Rich Experience
Our company established in 2005, and has nearly 20 years experience in manufacturing power sprayers.
FAQ
Q: Where are double impeller pumps commonly used?
A: Double impeller pumps are commonly used in various applications such as municipal water supply systems, fire protection systems, agricultural irrigation, and industrial processes where high flow rates and pressures are required.
Q: What is a double impeller pump?
A: A double impeller pump, often referred to as a two-stage pump, is a type of centrifugal pump that features two impellers arranged in series.
Q: What is the difference between single and double impeller pumps?
A: The Single Impeller pump delivers better flow rates below 40m of total dynamic Head, while the Twin Impeller delivers more water above 40m.
Q: What type of pump has a double entry impeller?
A: double entry impeller of centrifugal pump is single-stage, double suction, horizontal split case centrifugal pump specially engineered for high load water pumping applications. This double entry impeller of centrifugal pump is more efficient and reasonable which is designed and optimized for global market.
Q: What are the three 3 types of the impeller?
A: Closed Impeller: A closed impeller has vanes that are fully enclosed between two discs, forming a continuous flow path. ... Semi-Open Impeller: ... Open Impeller:
Q: How does a double suction impeller work?
A: Double suction impellers draw fluid into the impeller vanes from both sides, balancing out the axial thrust the impeller imposes on the pump's shaft bearings. Single suction impellers use either balance holes in the back shroud or back vanes on the back shroud, to balance out its inherent axial thrust generated.
Q: What is the advantage using a double effect pump instead à single effect pump?
A: Single-acting vane pumps generate pressure in one direction during each cycle, making them suitable for specific low-pressure applications. On the contrary, double-acting vane pumps produce pressure in both directions, providing higher efficiency and versatility for various industrial uses.
Q: What is the difference between single impeller and double impeller pump?
A: In addition, single-suction pumps have an impeller filled with water at one end, while double-suction pumps have two inlets. As a result, double suction pumps are better for large flows, while single suction pumps need a large inlet and outlet diameter and stable operation.
Q: What is the difference between an impeller and a water pump?
A: The water pump ensures a continuous flow of water through the engine, preventing it from overheating. The impellor, which is a rubber component with blades, is the heart of this system.
Q: What is the problem with the impeller?
A: Damaged impellers can also lead to low flow in pumps. The top 3 most common causes for impeller failures are due to cavitation, erosion and corrosion.
