Haishun Machinery Co. , Ltd. is located in economy, traffic convenient Taizhou (The sprayer capital of China), Zhejiang, China. we specialize in the research and development, producing and manufacturing of power sprayer, plunger pump, knapsack power sprayer and pressure washing machine.
Why Choose Us
Rich Experience
Our company established in 2005, and has nearly 20 years experience in manufacturing power sprayers.We possess a high quality scientific research staffs already and a set of perfect quality certification systems.
Reliable Quality
In order to guarantee and offer the high quality and suitable price products and service continually, we insist on making 5% sale income investment in research and development field.
Global Shipping
The products sell well in the domestic market, and find a good sale in more than 30 countries and regions, such as Southeast Asia, The middle-east, Africa, Europe and America etc., we receive good evaluation from the users.
Overview of Agriculture Power Sprayer
An agriculture power sprayer is a specialized equipment used in agriculture for spraying pesticides, herbicides, fungicides, and fertilizers onto crops. It consists of a tank to hold the chemical solution, a pump to pressurize the solution, a spray nozzle or boom to disperse the solution, and often includes a power source such as an engine or a motor to drive the pump.
Advantages Of Agriculture Power Sprayer
Lower Cost
Electric sprayers are generally simpler, have fewer parts, and are much cheaper than gas-powered sprayers. Typically, the pump and motor are one unit, which is cheaper (compared to gas power) and requires no extra assembly, saving labor and assembly costs.
Less Space
Electric power sprayers usually take up less space. The electric pump and engine are usually slightly smaller than the engine and fuel pump assembly.
Less Maintenance
Electric sprayers have fewer moving parts and often have simpler plumbing. This means fewer defects, fewer parts to keep in stock, and easier maintenance.
Quieter
The electric motor makes almost no noise unlike a gas-powered sprayer which can be quite noisy. This can allow operators to operate earlier and later in the day without disturbing customers and neighbours.
We offer the following Product specifications：
|
Name |

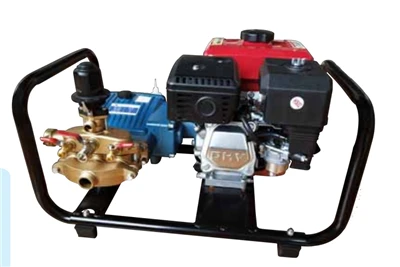

Direct Link Power Sprayer |
|
Model |
HS-J32 |
|
Working Pressure(Mpa) |
4 |
|
Flow(L/min) |
43 |
|
R.P.M |
900 |
|
Power(Hp) |
170F(7.5Hp) |
|
N.W/G.W(Kgs) |
33/35 |
|
Carton Dimension(cm) |
U-shaped:635x415x420 |
|
590x430x420 |
|
|
Plunger Material |
Ceramic |
|
Hard chrome-plated |
|
|
Dia(mm) |
ø32 |
|
Name |

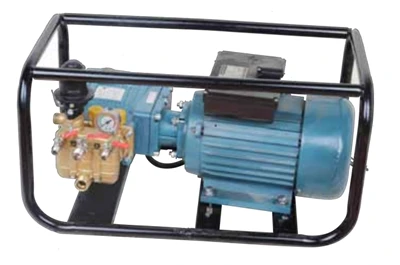

Direct-acting Plunger Pump Power Sprayer |
|
Model |
HS-J28M |
|
Working Pressure(Mpa) |
2-4 |
|
Flow(L/min) |
23.5 |
|
R.P.M |
800 |
|
Power(Hp) |
2.2 |
|
N.W/G.W(Kgs) |
37/38 |
|
Carton Dimension(cm) |
630*405*340 |
|
Plunger Material |
Ceramic |
|
Dia(mm) |
ø28 |
Application of Agriculture Power Sprayers
Agriculture
From crop spraying to orchard and vineyard maintenance, the Grease-Free Power Sprayer ensures efficient and reliable pesticide or fertilizer distribution in agricultural settings.
Fire Protection Systems
The pumps are employed in fire protection systems to provide high-pressure water flow for firefighting and emergency rescue purposes.
Chemical Industry
The pumps are suitable for liquid transfer, mixing, and spraying processes in the chemical industry.
Oil and Gas Sector
The pumps find application in the oil and gas industry for injecting and extracting liquids, boosting, and conveying mediums.
Many pesticides cause rapid corrosion of metal components in a spraying system. Pesticides should be washed from the whole system immediately after use. Cleaning a sprayer thoroughly not only increases its life but also reduces the chance of cross contamination of chemicals and prevents crop injury. In the case of wettable powders, cleaning prevents settling and caking which may be difficult to remove once the chemical has dried.
Always end the day with an empty tank. When using the same chemical the next day, flushing the sprayer with clean water is sufficient. Always flush the sprayer onto a site listed on the pesticide label. If a different pesticide will be used, a more effective cleaning is necessary. The cleaning solution will depend on the type of pesticide. Always check the pesticide label for specific cleaning instructions.
After cleaning, remove the nozzles and flush the system twice with clean water. Clean nozzles and screens in a strong detergent solution or kerosene, using a soft brush. Use chemical-resistance gloves for your protection.
The sprayer should be protected from deterioration during the storage period. Use automotive antifreeze with a rust inhibitor. This not only protects against corrosion but will reduce freezing in case all the water was not drained. Seal off any openings to prevent entry of dirt, debris or insects. Store the sprayer in a place secure from damage from other equipment or livestock. Make a list of all parts in need of replacement and order them well in advance of the next spray season.
Certificates
FAQ
As one of the most professional agriculture power sprayer manufacturers in China, we're featured by quality products and low price. Please rest assured to buy agriculture power sprayer for sale here and get quotation from our factory. Contact us for customized service.
